Automatic filling,automatic putting cap and automatic capping；

Chain plate roller conveyance，automatic stacking;

Digital input to set weight and recipes can be saved；

With working status indicator；

Weight inspection triggers barrel putting and filling operation；

GW/NW(barrel tared automatically) two filling modes；

Automatic zero position tracking,barrel quantity accumulation and weight accumulationa；

Automatic clear to zero after start-up and there is power-off protection device；

Protection device against emergency stop；

Factory default setting can be restored in case of misoperation；

Fault detecting function makes maintenance easier.

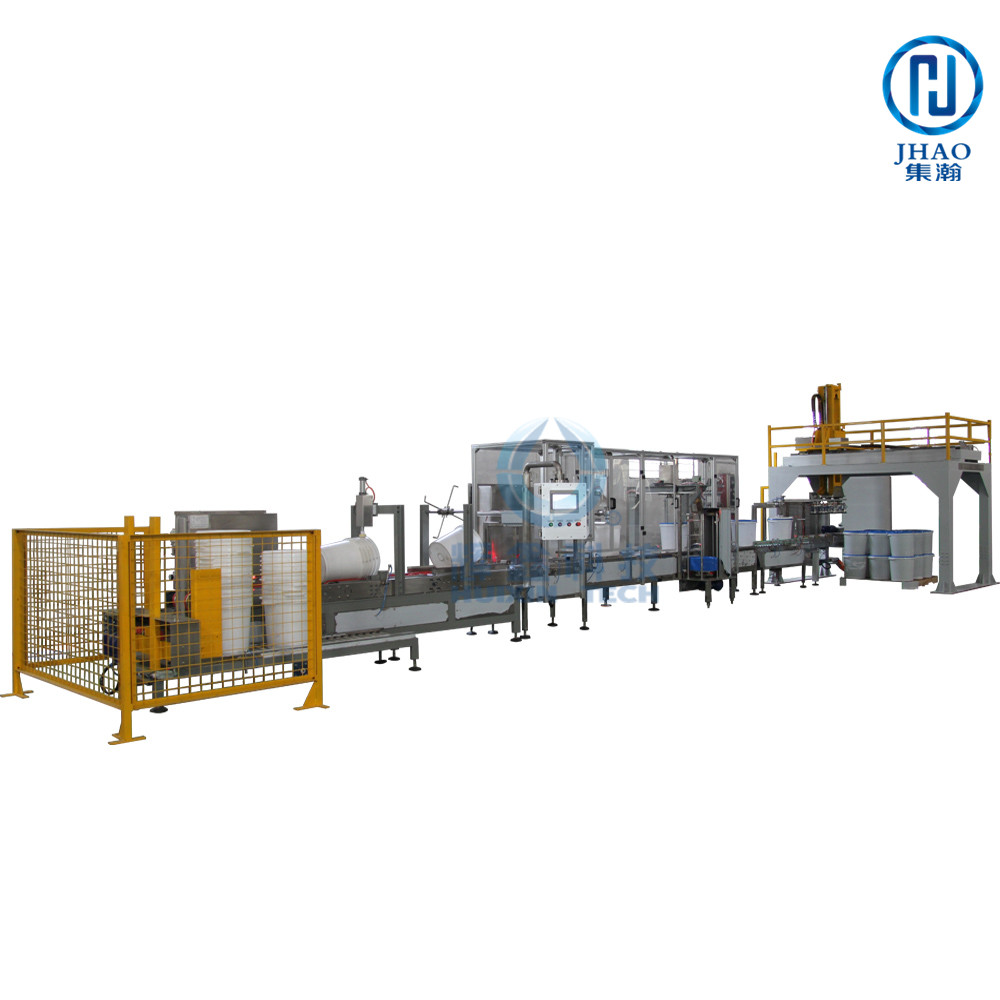

DCS30B2FJGFY-MD filling line can be adjusted to different filling height and it can move up and down automatically.It fits barrels in various shapes and the chain plate roller conveyanec makes filling safe and easy,automatic putting cap and automatic capping .two-speed filling is "fast and accurate"and filling stabitity is good. It can effectively improve filling speed,reduce wastage,save cost and alleviate worker's work load.


Weighing range
 ≤30 kg
 Barrel specification
 ≤diameter350×height400(mm)

Graduation value
 1g、2g、5g、10g
 Power supply
 Ac380∨±10% 50HZ

Accuracy level
 X (0.5) 级
 Air source
 0.5Mpa

Filling speed
 240 buckets/hour
 Dimension
 13400×3050×3600（mm）
