Applications:
Applicable to various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.
Function:
·Digital input to set weight and 10 recipes can be saved;
·With working status indicator and clock display;
·Tare inspection triggers all-position barrel putting and filling operation
·GW/NW (barrel tared automatically) two filling modes;
·Automatic zero position tracking, barrel quantity accumulation and weight accumulation;
·Automatic weight error correcting;
·Automatic clear to zero after start-up and there is power-off protection device;
·Protection device against emergency stop;
·Factory default setting can be restored in case of misoperation;
·Fault detecting function makes maintenance easier;
·Easy moving, explosion-proof configuration and simple operation.
Feature:

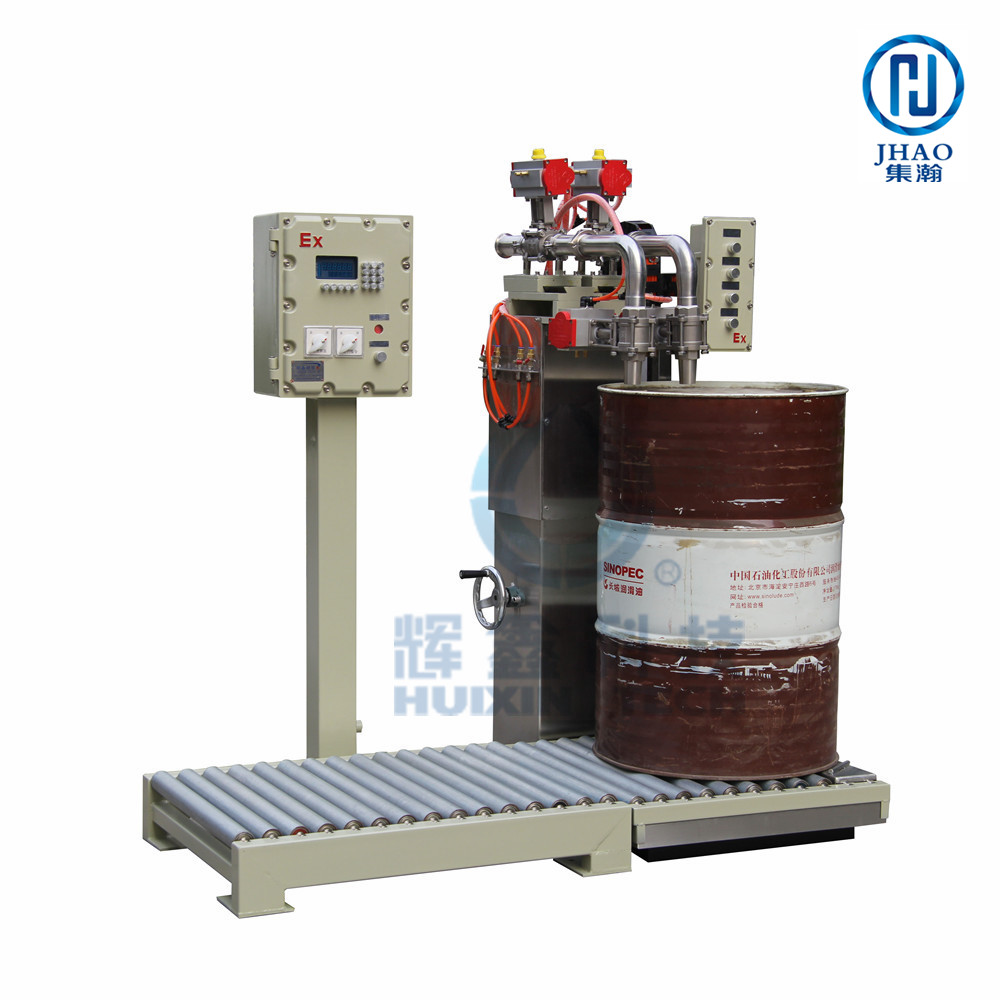

DCS200AAFB filling machine: filling outlet height adjustable to fit various packing barrels, roller conveyance and automatic moving up and down, giving easy and safe filling work. two-speed “fast & accurate” filling with good performance
Technical indicators:
Weighing range | ≤40 kg | Barrel specification | ≤diameter350×height400(mm) |
Graduation value | 1g、2g、5g、10g | Power supply | Ac220∨±10% 50HZ |
Accuracy level | X (0.5) 级 | Air source | 0.5Mpa |
Filling speed | 8-12barrels/min | Dimension | 1500x600x1300(mm) |
