Applications:
Applicable to various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.
Function:
·Digital input to set weight and 10 recipes can be saved;
·With working status indicator and clock display;
·Tare inspection triggers all-position barrel putting and filling operation
·GW/NW (barrel tared automatically) two filling modes;
·Automatic zero position tracking, barrel quantity accumulation and weight accumulation;
·Automatic weight error correcting;
·Automatic clear to zero after start-up and there is power-off protection device;
·Protection device against emergency stop;
·Factory default setting can be restored in case of misoperation;
·Fault detecting function makes maintenance easier;
·Easy moving, explosion-proof configuration and simple operation.
Feature:

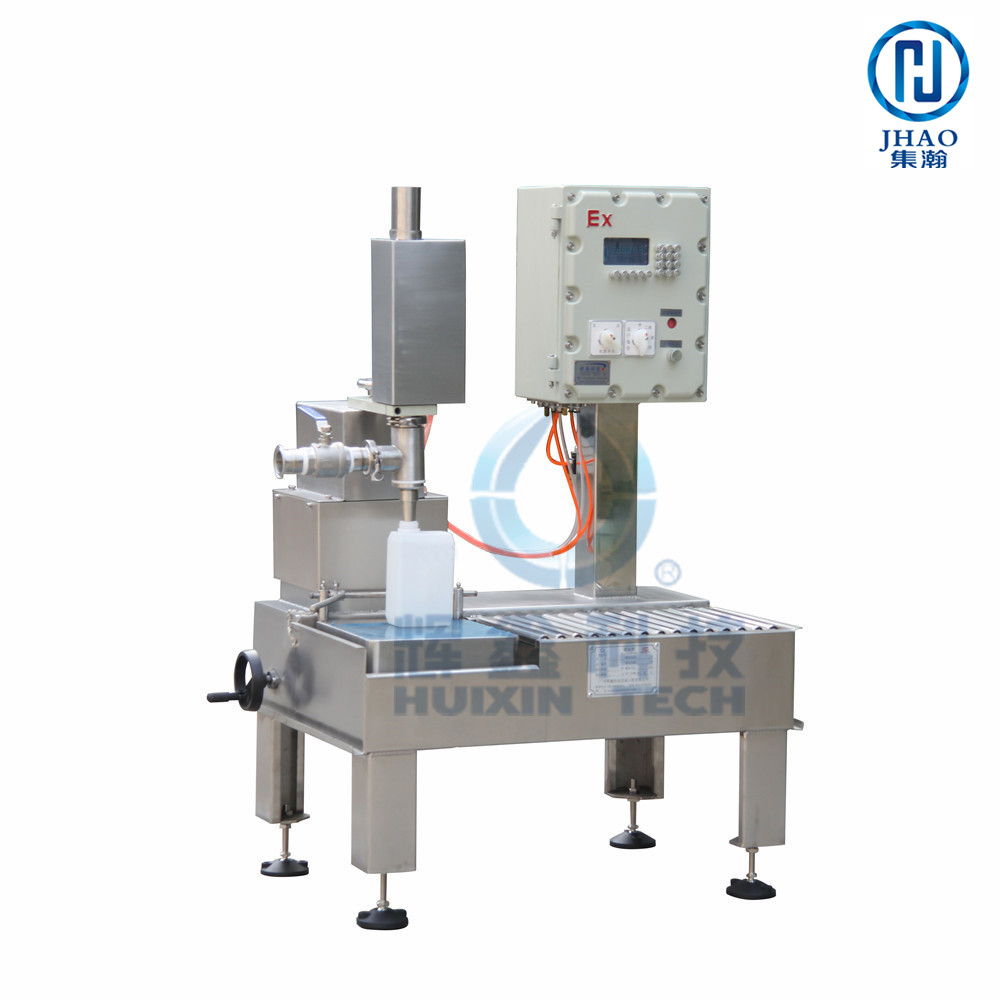

DCS30BG-FB explosion-proof filling machine is mainly applicable to filling thin materials. One person can operate two filling outlets and the barrel position can be adjusted according to worker’s habbit. The filling outlet height is adjustable and fit for round, square,and oblate barrels with various mouth diameters. It is easy to move around and one machine can be used for filling many materials. two-speed filling is “fast and accurate” and filling stability is good. It can effectively improve filling speed, reduce wastage, save cost and alleviate worker’s work load.
Technical indicators:
Weighing range | ≤40 kg | Barrel specification | ≤diameter350×height400(mm) |
Graduation value | 1g、2g、5g、10g | Power supply | Ac220∨±10% 50HZ |
Accuracy level | X (0.5) 级 | Air source | 0.5Mpa |
Filling speed | 8-12barrels/min | Dimension | 450x1000x1250(mm) |
