Applications:
Applicable to various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.
Function:
•Digital input to set weight and 10 recipes can be saved;
•With working status indicator and clock display;
•Tare inspection triggers all-position barrel putting and filling operation
•GW/NW (barrel tared automatically) two filling modes;
•Automatic zero position tracking, barrel quantity accumulation and weight accumulation;
•Automatic weight error correcting;
•Automatic clear to zero after start-up and there is power-off protection device;
•Protection device against emergency stop;
•Factory default setting can be restored in case of misoperation;
•Fault detecting function makes maintenance easier;
•Easy moving, explosion-proof configuration and simple operation.
Feature:

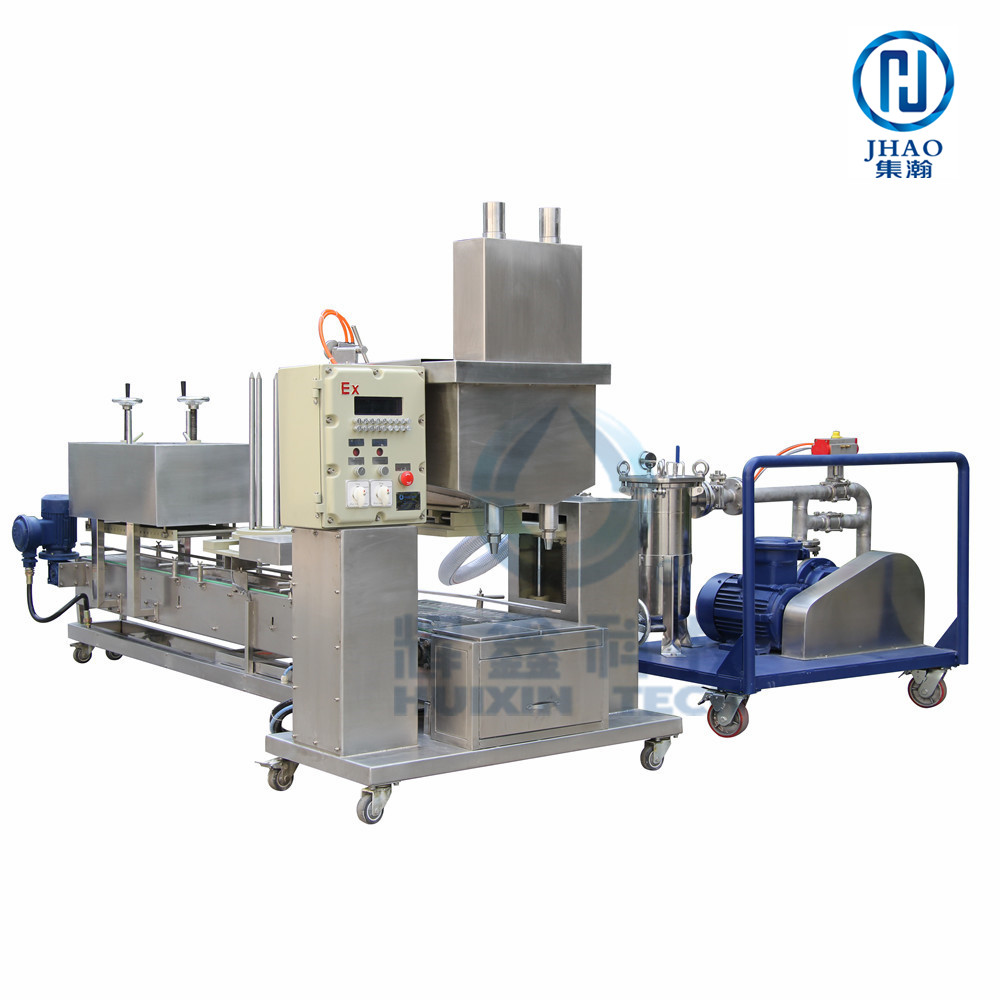

DCS30GYFBC10DY explosion-proof filling machine: custom-made design and operated by one worker. Putting barrels to any position according to worker’s habbit can finish filling without problem. Roller conveying and adjustable outlet height fit filling round, square and oblate barrels with the mouth in various diameters. Optional filtration unit can make the machine meet multiple demands of filling various liquids. Flexible moving and two-speed “fast & accurate” filling with good performance stability can reduce wastage, save cost and alleviate worker’s operation pressure.
Technical indicators:
Weighing range | ≤40 kg | Barrel specification | ≤diameter350×height400(mm) |
Graduation value | 1g、2g、5g、10g | Power supply | Ac220∨±10% 50HZ |
Accuracy level | X (0.5) 级 | Air source | 0.5Mpa |
Filling speed | 8-12barrels/min | Dimension | 1500x580x1300(mm) |
